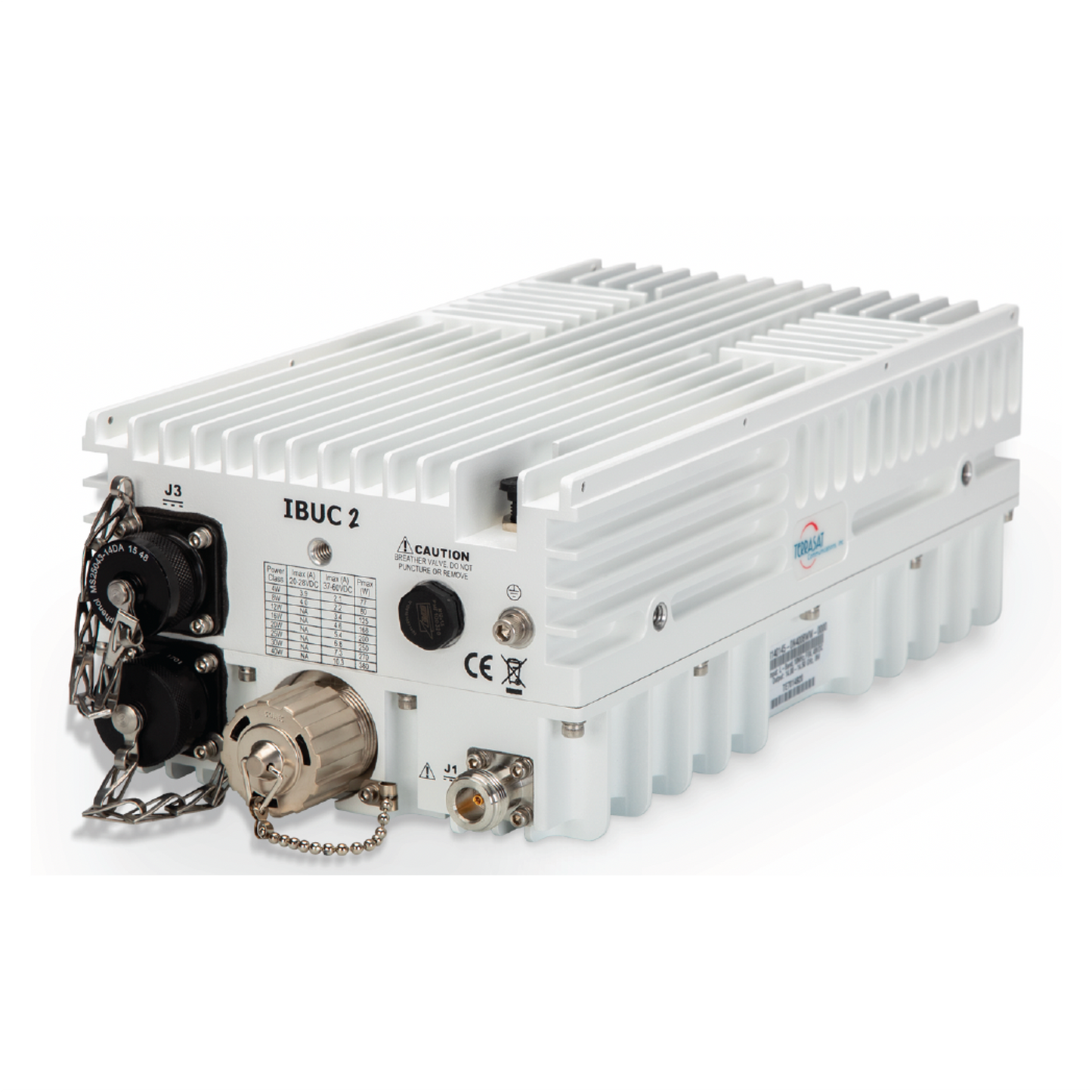

Terrasat IBUC 2 C-band series
Terrasat IBUC 2 C-band series
$0.00
Terrasat’s IBUC 2 series offers a comprehensive range of C-Band Block Upconverters (BUCs) designed to meet diverse satellite communication requirements. These units integrate a Block Upconverter with a Solid State Power Amplifier (SSPA) in a compact, weatherproof package, ensuring high performance and reliability across various applications.
Key Features
- High-Quality Performance: Each unit undergoes individual testing over temperature to ensure superior linearity and maximum usable output power.
- Advanced Management and Control:
- Local web interface and NMS-friendly SNMP support.
- Over 70 user-configurable thresholds and alarms.
- Upgraded event log with 1,000 sensor readings.
- Performance trend analysis tools and statistical logs.
- Embedded web pages for universal web browser access.
- Robust Construction: Designed to withstand harsh environmental conditions with a weatherized RJ45 Ethernet interface for simplified connection.
- Flexible Configuration Options:
- Available in Standard, Extended, or Full C-Band frequencies.
- Options for AC or DC power input models.
- Selectable Automatic Gain Control (AGC) or Automatic Level Control (ALC) for improved space segment management.
Product Specifications
Below is a comparison of selected Terrasat IBUC 2 C-Band Block Upconverters:
| Model | Frequency Bands | Output Power | Power Supply Options | Dimensions (L x W x H) | Weight | |
|---|---|---|---|---|---|---|
| IBUC 2 C-Band 20W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
20W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2 C-Band 25W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
25W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2 C-Band 40W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
40W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2 C-Band 50W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
50W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2 C-Band 60W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
60W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2 C-Band 80W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
80W | AC or DC | 11.2″ x 5.4″ x 5.0″ | 10.5 lbs | |
| IBUC 2G C-Band 100W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
100W | AC | 12.4″ x 5.4″ x 5.0″ | 12.0 lbs | |
| IBUC R C-Band 150W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
150W | AC or DC | 19.5″ x 8.5″ x 8.0″ | 40.0 lbs | |
| IBUC R C-Band 200W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
200W | AC or DC | 19.5″ x 8.5″ x 8.0″ | 40.0 lbs | |
| IBUC R C-Band 400W | Standard: 5.85-6.425 GHz Extended: 5.85-6.65 GHz Full: 5.85-6.725 GHz |
400W | AC | 19.5″ x 8.5″ x 8.0″ | 40. |
| Terrasat IBUC 2 C-band series | Terrasat IBUC 2 C-band 20W Block Upconverter, Terrasat IBUC 2 C-band 25W Block Upconverter, Terrasat IBUC 2 C-band 40W Block Upconverter, Terrasat IBUC 2 C-band 50W Block Upconverter, Terrasat IBUC 2 C-band 60W Block Upconverter, Terrasat IBUC 2 C-band 80W Block Upconverter, Terrasat IBUC 2G C-Band 100W Block Upconverter, Terrasat IBUC R C-Band 100W Block Upconverter, Terrasat IBUC R C-Band 150W Block Upconverter, Terrasat IBUC R C-Band 200W Block Upconverter, Terrasat IBUC R C-Band 400W Block Upconverter |
|---|
