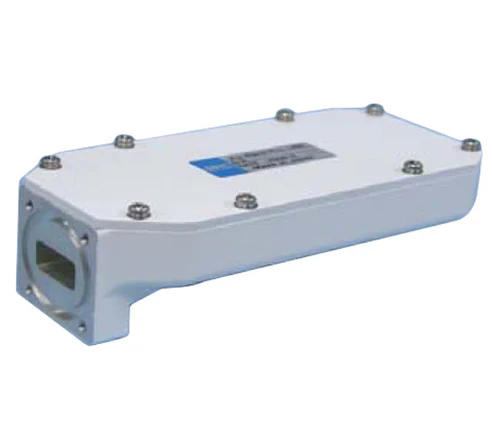

SPC Japan SPCR5400BN Ext. Ref. Ku-Band PLL LNB
SPC Japan SPCR5400BN Ext. Ref. Ku-Band PLL LNB
Original price was: $235.00.$118.00Current price is: $118.00.
FEATURES
■ 1dB Gain Compression +10dBm
■ High Stability, Low Noise Converter
■ Reliability by design
■ High Quality by design
■ Low cost by design
■ Small, Light weight, Easy to install
SPC Electronics Corp, a global leader in the design,manufature,supply of LNB of VSAT has a wealth of experience in providing significant supplies to fulfill the needs of the wireless market.
| Item | Specification |
| RF Input Frequency | 11.70 to 12.20 GHz12.25 to 12.75 GHz
10.95 to 11.70 GHz |
| IF Output Frequency | 950 to 1450 MHz950 to 1700 MHz |
| Local Frequency | 10.75 GHz11.30 GHz
10.00 GHz |
| Local Frequency Stability | Phase locked to external reference |
| Requirement for External Reference | * Supplied through center conductor of IF cable[Frequency] 10MHz(sine wave)
[Input Level] 0 to -10dBm @ IF out [Phase Noise] -134dBc/Hz max. @ 100 Hz -144dBc/Hz max. @ 1 KHz -154dBc/Hz max. @ 10 KHz -154dBc/Hz max. @ 100 KHz |
| Local Oscillator SSB Phase Noise: | Offset Frequency / Phase Noise100 Hz / -60 dBc/Hz
1 KHz / -70 dBc/Hz 10 KHz / -80 dBc/Hz 100 KHz / -95 dBc/Hz |
| Noise Figure | 0.8dB max. @ +25°C |
| Gain | 55 to 70 dB over Frequency & Temperature |
| Gain Ripple | 1 dB p-p max per 36MHZ segment across the frequency band |
| Input VSWR | 2.5: 1 typical |
| Output VSWR | 2.3: 1 max |
| Output 1 dB Gain Compression Point | +10 dBm min. |
| Image Rejection | -45dBc max |
| Spurious in Rx Band | -140dBm max. @ waveguide input excluding Rx out + 1 MHz measured at RF Input power -85dBm |
| Input Voltage | +12 to +24 V supplied through center conductor of the IF cable |
| Current | 350 mA max |
| Input Interface | WR-75,Waterproof – Mated with matching flange and O-ring |
| Output Interface | Standard: F-Type, 75 ?, female, WaterproofOption: N-Type, 50 ?, female, Waterproof |
| Size | 125(L) mm x 60(W) mm x 22(H) mm |
| Weight | 340g (F-Conn) / 348g (N-Conn) |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Relative Humidity | Up to 100%, condensation and frost |
| Altitude | Up to 10,000 feet at operating |
