Skyware Global RxTx Cross Polarized Feed Ku Band (Model 6116784-13)
Skyware Global RxTx Cross Polarized Feed Ku Band (Model 6116784-13)
$0.00

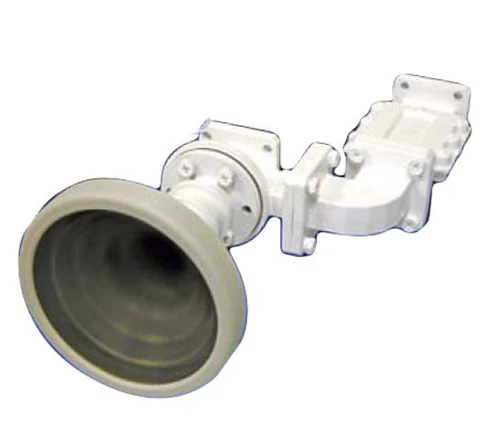

The Skyware Global Ku-Band cross-polarized feed has been specifically designed for our line of offset reflectors. Electrically tested and matched, this die-cast feed assembly provides maximum performance for demanding commercial applications. This feed is compatible with SFL Class I antennas.
- Broadband performance
- Includes mounting clamp and hardware
- Polarization scale built-in for feed horn.
- All materials comply with EU directive No. 2002/95/EC (RoHS).
| Rx | Tx | ||
| Operating Frequency | 10.70 – 12.75 GHz | Operating Frequency | 13.75 – 14.50 GHz |
| VSWR | 1:5:1 | VSWR | 1:3:1 |
| Isolation | 35 dB | Isolation | 80 dB |
| Insertion Loss | 0.6 dB | Insertion Loss | 0.2 dB |
| Cross-Polarization (On Axis) | >30 dB | Cross-Polarization (On Axis) | >30 dB |
| Interface | WR75 Cover Flange | Interface | WR75 Cover Flange |
(All specifications typical)
