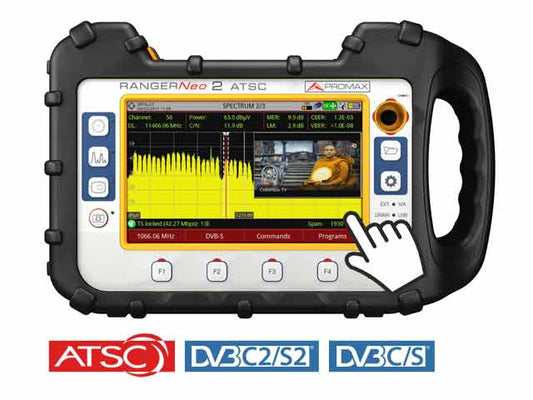

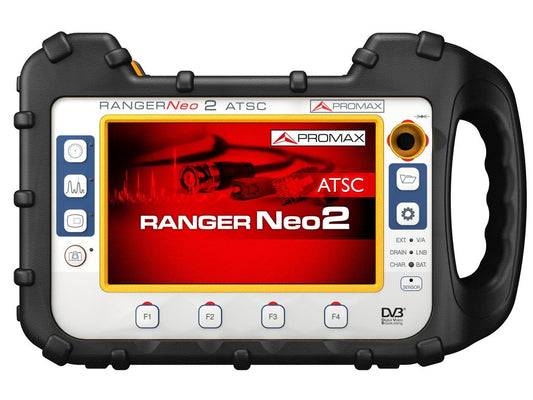

Promax RANGERNeo 2: Field strength meter (19” rack version)

Promax RANGERNeo 2: Field strength meter (19” rack version)

Promax RANGERNeo 2: Field strength meter (19” rack version)

$8,580.00

request a quote
SKU RANGER-NEO2-RACK Categories , ,



19” rack version of the RANGERNeo 2, 6th generation of TV & Satellite analysers. Dramatically fast spectrum analyser. It covers DVB-T/C/S, as well as DVB-T2/C2/S2. HDMI, IPTV, ASI-TS, Encrypted channels, Dolby digital Plus… allows displaying multiple screens in 7” split screen format.

SPECIFICATIONS RANGERNeo 2
OPERATION MODES Hybrid operation: 7” touch screen or conventional buttons
DIGITAL STANDARDS – DVB-T, DVB-T2, DVB-T2 lite
– DVB-C, DVB-C2, J83 Annex C QAM
– DVB-S, DVB-S2, DVB-S2 multistream, DSS
DOLBY DIGITAL PLUS Included
CONNECTIVITY – Universal RF input
– TS-ASI input and output
– IPTV input
– HDMI output
– Analog audio/video input and output
– Common Interface slot (CAM modules)
– USB interface
FUNCTIONS – Merogram and Spectrogram
– Constellation diagram for all DVB standards
– LTE filters
– Dynamic echoes analysis
– StealthID (instant signal identification)
– DVB-S2 multistream
– PLS (physical layer scrambling)
– Ultra fast spectrum analyser
(90 ms sweep time) with peak hold
– FM RDS radio measurements
– Signal monitoring
– Field strength
– Task planner
– H.265 detection
OPTIONS – Optical fibre measurements
– 3 GHz band extender
– DAB/DAB+ radio measurements
OPTICAL FIBRE (optional) – Integrated optical-to-RF converter
– Integrated selective optical power meter
ASI-TS INPUT AND OUTPUT – Real-time transport stream analysis function
IPTV INPUT – Ethernet 100/1000 Mbps
– RJ45 connector
– UDP or RTP/UDP protocols
– MULTICAST / IGMP v2 transmission methods
– Payload: from 1 to 7 MPEG-2 packets
PC CONNECTION (via USB interface) – NetUpdate 4 free software
– Free and automatic firmware updates
– Datalogger data download
– Channel tables customization
– Measurement reports
