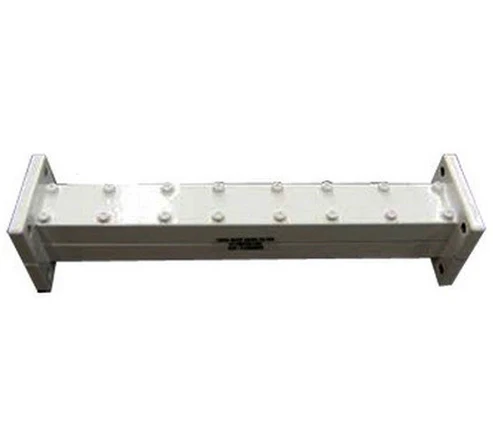

Nexgenwave 12Ghz Waveguide Filter (Model No. I12WF00100)
Nexgenwave 12Ghz Waveguide Filter (Model No. I12WF00100)
Original price was: $320.00.$160.00Current price is: $160.00.
Nexgenwave 12Ghz Waveguide Filter (Model No. I12WF00100)
- 950MHz to 1.7GHz Bandwidth
- Waveguide Band Rejection Filter
- Rejection Band 12.75 – 13.25Ghz
- Pass Band 11.7-12.25 Ghz
- Dimension 165(L) x 38(W) x 38(H)mm
Mechanical Drawing
| Parameters | Specifications |
| Center Frequency | 11.7GHz – 12.25GHz |
| Bandwidth | 550MHz |
| Insertion Loss | 0.5dB Max. |
| VSWR | 1.2 max |
| Rejection 12.75 – 13.25GHz | 75dB Min. |
| IN/OUT Port | WR75 |
| Color | White |
| Size (mm) | 165x38x38 |
| Weight (kg) | 0.2 |
| Humidity | 100% |
