MITEC – Power Supply -48Vdc +Bias Tee Part Number 215988-001MD
MITEC – Power Supply -48Vdc +Bias Tee Part Number 215988-001MD
$470.00

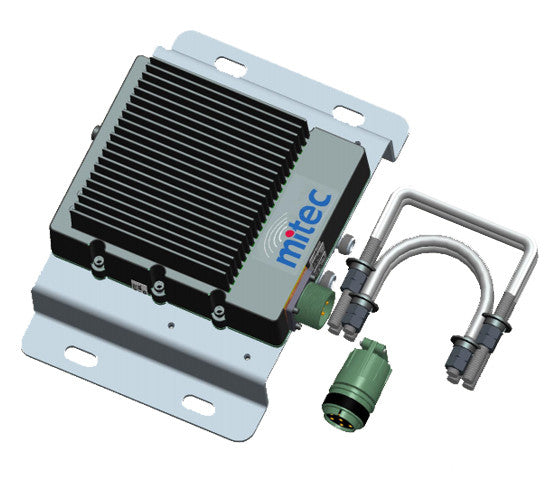

The Power Supply -48Vdc +Bias Tee module is a highly reliable, high quality, cost-efficient 48V isolation system designed for use in VSAT applications. This line of superior products, engineered using state of the art technology, is characterized by unparalleled durability and dependability.
This section describes the module functions in detail. The functional overview explains the power distribution. Figure 1 block diagram illustrates the module.
TECHNICAL SPECIFICATION
| PERFORMANCE | ||
| IF Input Port DC | DC Blocked | |
| IF Output Port DC | +32 to +50VDC @ 8 Amp | |
| IF Port Frequency Range | 10MHz, 950 to 1825 MHz | |
| Insertion Loss IF input to IF output | -1 dB nom. | |
| Input Return Loss both ports | -12 dB max | |
| DC Input Power Requirement | 40 VDC to 50 VDC, 430W typ. | |
| Input Interface | N-type, female (50 ohm) | |
| Output Interface | N-type, female (50 ohm) | |
| Package | Outdoor, weather resistant | |
| Size (overall dimensions | 8.0500″ x 5.3550″ x 3.345″ (204.47mm x
136.017mm x 84.899mm) |
|
| Weight | 10 lbs (4.535 kg) | |
| Environmental | Operational | Storage |
| Temperature Range | -40° to +55°C | -40°C to +75°C |
| Humidity | 0 to 100% | |
| Altitude | 15,000 ft AMSL | |
