Ku-Band OMT Transmit Reject Filter – Compact
This is a highly integrated three-port assembly, combining an OMT with a transmit reject filter and elbow. It is small, lightweight, easy to install, and is aesthetically appealing.
The OMT is designed for linear orthogonal polarization. The combined OMT and filter assembly provides very high isolation and is suitable for a large variety of applications in VSAT ground terminals.

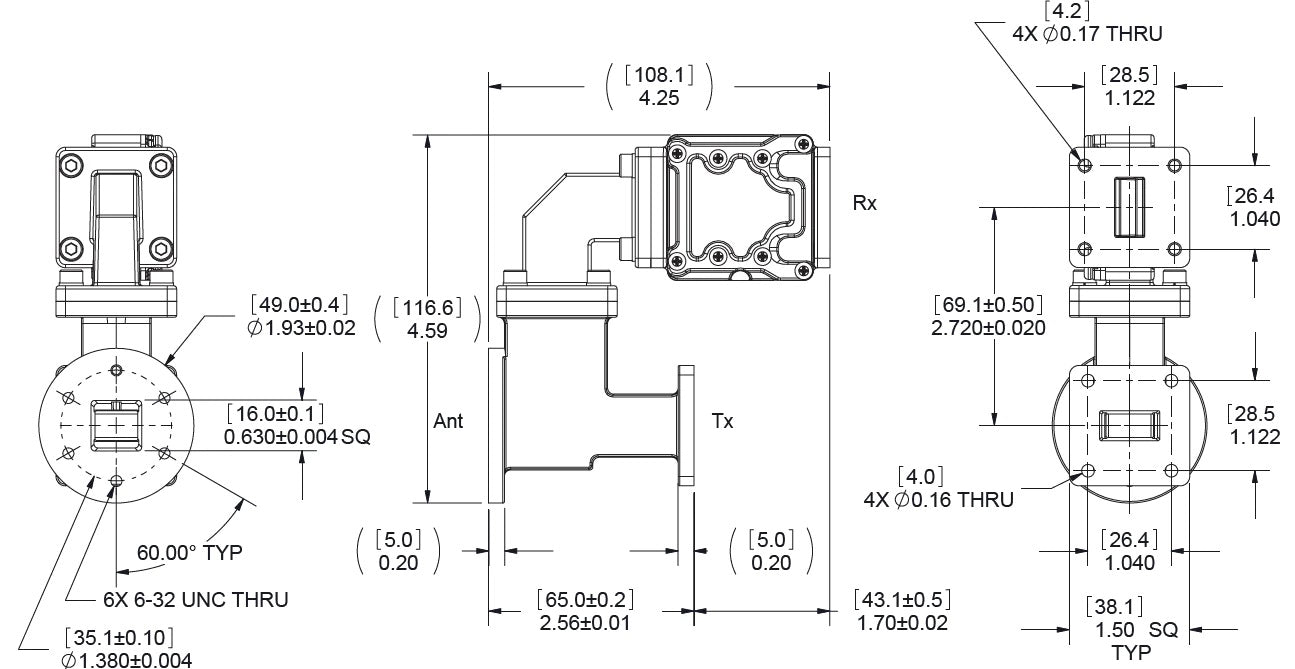

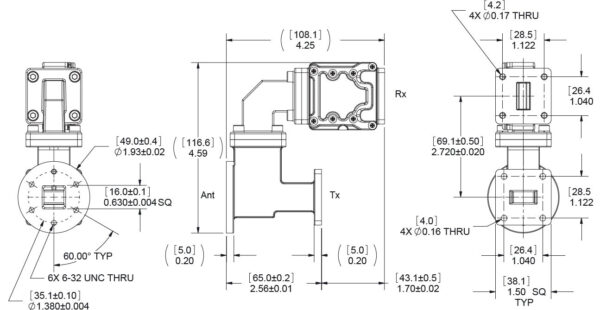

The unit has a WC 75 flange at the feedhorn port and WR 75 cover flanges at the transmitter LNB ports.
| Waveguides: Feedhorn portTransmitter portLNB port |
WC 75 with threaded holes |
| Frequency: TransmitReceive |
Tx- 13.75 ~14.50 GHz |
| VSWR: Transmit portReceive Port |
1.2:1 |
| Cross Polarization: TransmitReceive |
30 dB min |
| Insertion Loss: Tx Prot to Rx PortRx Port to Feedhorn Port |
0.2 dB |
| Isolation: Tx port to Rx port at Tx frequency |
75 dB |
| Maximum Input Power: Tx port to feedhorn |
50 dB |
| Other: WeightOperating temp. |
390gm Max |
