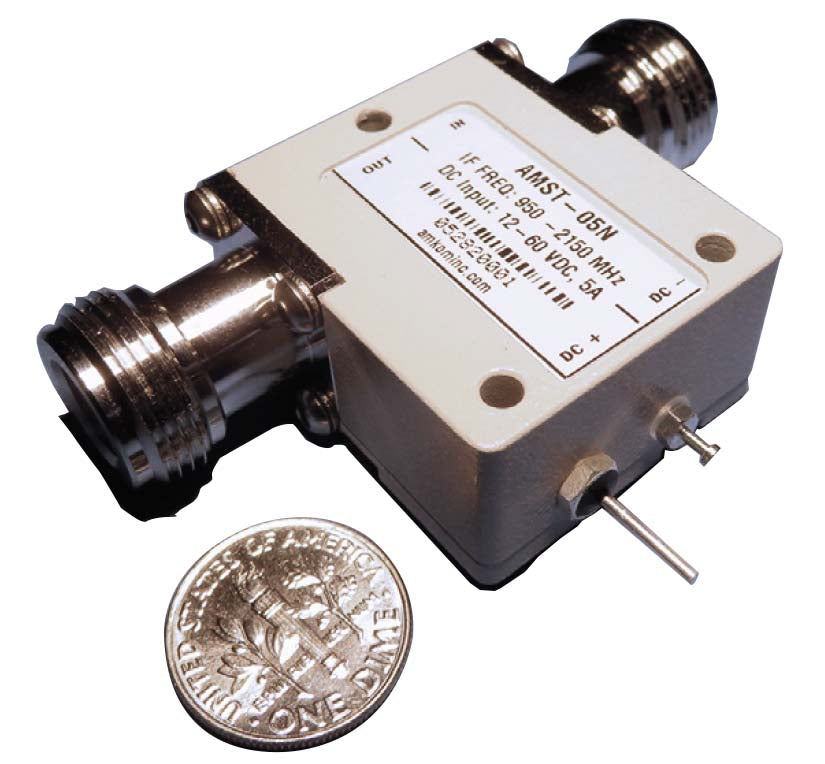

Amkom AMST-05 Universal BIAS T Pass IF & 10MHz, DC input 12 – 60 VDC up to 5A Power Injector
Amkom AMST-05 Universal BIAS T Pass IF & 10MHz, DC input 12 – 60 VDC up to 5A Power Injector
$227.00
FEATURES
- Super Compact, Robust & Mountable
- Filters DC or Fan Noise
- Low Insertion and Return Loss
- Pass – through IF (L-Band), and 10 MHz Reference
- RoHS Compliant
- Built – in DC filters
Mechanical Drawing
TECHNICAL SPECIFICATION
| IF Input Signals | Pass-through IF (L-Band), and 10MHz Referece from Modem |
| IF Frequency Input | 950 to 2150 MHz |
| DC Input Range | 12 to 60 Vdc |
| DC Current | 5A |
| Reference Input | 10 MHz |
| VSWR | 1.5:1 max |
| Insertion Loss IF | 0.3 dB max over temp |
| Insertion Loss 10MHz | 0.3 dB max over temp |
| Coax Input / Output Connector | N-type / N-type |
| Operating | Storage Temperature | – 60 to + 85 °C |
| Dimensions | Weight | 36x30x17.5 mm (without connectors) |
